Water Fixers has been designing, manufacturing, servicing, repairing, and installing Reverse Osmosis water purification systems since 1987. We manufacture them in our warehouse located right here on the Central Coast. We serve both the residential and commercial markets, offering custom design and build services for any pure water application. The UPS series of Reverse Osmosis systems was conceived in response to individuals who want the “Ultimate” cost-no-object quality and won’t settle for second best. To complement the build quality, we include the best quality USA-made filter cartridges for the ultimate purity. We’ve installed and serviced thousands of systems over the past 38 years, and the UPS-5T is one of our finest examples of the highest quality residential system ever built. No one else has the wisdom or can compete with our quality and variety.

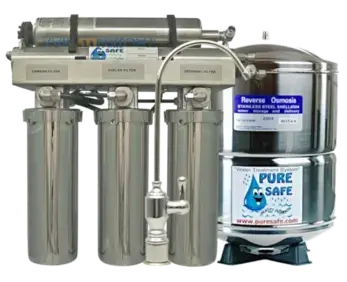

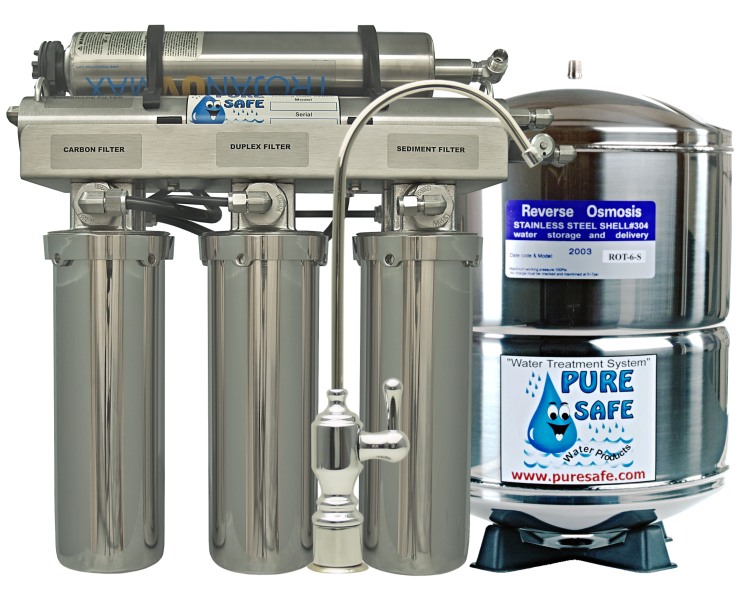

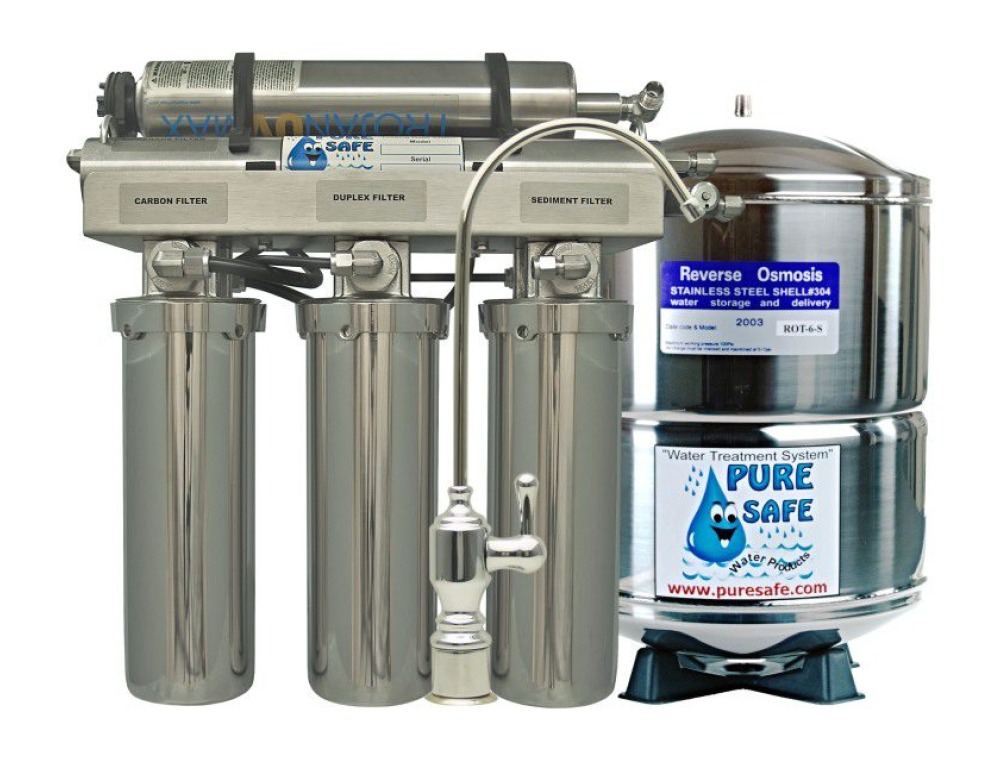

The UPS-5T is assembled here in our warehouse at Water Fixers. “Built to Last a Lifetime”, this 5-stage combination Ultra-violet Light and Filter cartridge system uses all USA-manufactured components and USA-manufactured filter cartridges. This system is produced with stainless steel components, except for the faucet. We designed this system for individuals and companies that desire uncompromising, ultimate water quality, purity, and safety results. An Ultra-Violet Light module is mounted on top of the Membrane housing to treat water-borne bacteria when water is being dispensed. You won’t find anything like this at Big Box stores or other sources. It also includes a 4-gallon stainless steel storage tank and a luxurious air-gap dispensing faucet. No one offers the quality of filters that we include as standard equipment.
Cheap filters do not have the micron size or special filter material required to remove VOCs (volatile organic chemicals), Hydrocarbon Gases (chlorine, ammonia, chloramines), Cysts (cryptosporidium, cyclospora, giardia), Silt, Clay, and other toxic contaminants, when compared to USA-manufactured cartridges. Purchasing “Cheap Filters” to save a few dollars, or because it’s convenient, or convincing yourself that any cheap water filter will provide the same quality of pure water as a USA-manufactured filter can, are not acceptable excuses to compromise the integrity and safety of your drinking water. The quality of water Filter Cartridges installed inside any Reverse Osmosis Drinking Water System are critical in determining the purity, safety, and quantity of water delivered. With cheap Chinese-manufactured filters, you need to consider product safety and quality control when compared with American manufacturing standards and regulatory agencies. Water Fixers is THE ONLY COMPANY that incorporates the highest quality of American-made filter cartridges as “Standard Equipment” in our SPS, EPS, and UPS Reverse Osmosis Drinking Water Systems. If you care about protecting your health as much as we do, you’ll choose Water Fixers for all your water filter cartridge purchases.
2.5″ x 10″ graded density, graduated depth, micro-fiber filter cartridge. Molded micro-fiber material with a nominal 1 micron particle filtration rating for cysts, silt, clay, sediments, sand, rocks, etc. The primary function is to prevent super-fine sediments from fouling the membrane filter. USA-manufactured. NOTE: The graduated depth micro-fiber design becomes extremely dense in material weight from the outer perimeter of the cartridge to the center core, providing graduated depth filtration and far superior dirt retention. Service Interval: Recommended every 12 months.
Benefits: VOCs, Pesticides, Herbicides, Insecticides, Hydrocarbon Gases, Chlorine, Cysts, Silt, Clay
2.5″ x 10″ Patented two filter cartridges in one cartridge technology. Featuring a high-density, coconut shell, powdered carbon impregnated pleated-fiber filter cartridge. Molded and pleated micro-fiber material with a nominal 1 micron particle filtration rating with each fiber impregnated with coconut shell powdered carbon to remove silt, clay, sediments, sand, rocks, cysts (giardia, cyclospora, cryptosporidium, e-coli), and adsorb hydro-carbon gases (chlorine, ammonia, chloramines), VOC’s (toluene, benzene, xylene, MTBE, perchlorate), and other contaminants. The primary function is to provide two stages of filtration in one single cartridge to prevent sediments, gases, and chemicals from fouling or damaging the membrane filter. USA-assembled. NOTE: Coconut Shell Carbon has twice as many cell sites, adsorbs twice as fast, and retains twice as many gases and VOC’s as Bituminous Carbon; therefore, it is clearly superior in performance! Service Interval: Recommended every 12 months
TFC (thin film composite) Non-chlorinated water membrane filter cartridge. Particulate Filtration rating at .001 micron. Removes Total Dissolved Solids (TDS), Salts, Metals, Minerals, Organic Matter, Pyroxene’s, Sub-micron Colloidal matter, Cysts and Bacteria, and other contaminants from an untreated water supply. Cannot be used with a chlorinated water source. Average rejection ratio: > 98%. Rated production up to 24 gpd. USA-manufactured. Service Interval: Every 36 months recommended.
Benefits: VOCs, Pesticides, Herbicides, Insecticides, Hydrocarbon Gases, Chlorine, Cysts, Silt, Clay
2.5″ x 10″ solid pressed coconut shell carbon block filter cartridge. Featuring a high-density, high-volume, coconut shell, powdered carbon briquette, with a nominal 1/2 micron particle filtration rating to remove cysts (giardia, cyclospora, cryptosporidium, e-coli), and adsorb hydro-carbon gases (chlorine, ammonia, chloramines), and VOC’s (toluene, benzene, xylene, MTBE, perchlorate), and other contaminants. The primary function is to provide the safest, healthiest, purest water possible by removing Chlorine, Chloramines, Hydrocarbon Gases, VOC’s, and Cysts when dispensing water to the faucet. USA-manufactured. NOTE: Coconut Shell Carbon has twice as many cell sites, adsorbs twice as fast, and retains twice as many gases and VOC’s as Bituminous Carbon; therefore, it is clearly superior in performance! Service Interval: Recommended every 12 months.
Stainless Steel Ultra-Violet Light System. Featuring a special lamp that emits short-wavelength UVC light, which is highly energetic. The lamp uses germicidal UVC light (200-280 nm) to penetrate microorganisms, damaging their DNA or RNA, preventing them from replicating and rendering them inactive or “dead,” making it a chemical-free way to disinfect air, water, and surfaces by disrupting vital microorganism cellular functions. The primary function is to ensure microbiologically safe drinking water. UV Lamp and Quartz Sleeve Service Interval: Recommended every 12 months
1-1 “Patented” Reverse Osmosis Membrane Filter technology that uses only 1 gallon of drain water to produce 1 gallon of pure drinking water. After years of research and development, this new water-saving membrane is now affordable and available to upgrade and replace your old technology membrane. Our Pure Safe Water Products Reverse Osmosis systems employ 3-1 ratio membranes and standard equipment, but we now offer the 1-1 ratio membrane as an affordable option. If you are looking for the ultimate water savings, then you just found the solution. This membrane still employs the TFC (thin film composite), Non-chlorinated water membrane filter cartridge. Particulate Filtration rating is at .001 micron. It removes Total Dissolved Solids (TDS), Salts, Metals, Minerals, Organic Matter, Pyroxene’s, Sub-micron Colloidal matter, Cysts and Bacteria, and other contaminants from an untreated water supply. It cannot, however, be used with a chlorinated water source. Average rejection ratio: > 98%. Rated production up to 50 gpd. USA-manufactured. Service Interval: Recommended every 24-36 months
An Alkali Post-filter is available to add on to any new reverse osmosis drinking water filter system, or to retrofit any pre-existing reverse osmosis system. The Alkali filter cartridge contains calcium and magnesium carbonates, essentially hard water minerals that are dissolved into the water stream when dispensing water from the storage tank to the faucet. Adding the hard water minerals back into the water can raise the PH level of the purified water if that is a concern for the individual. Sometimes, when the osmosis membrane filter removes most or all of the dissolved minerals diluted in the tap water, the PH level drops. To raise the PH level back up, you would install an Alkali filter cartridge. The internal filter media is sacrificial and must be replaced periodically. The frequency of the filter change interval will depend on water usage and water quality.

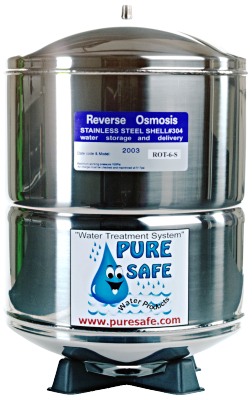

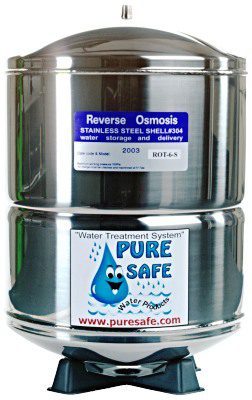

4-gallon Stainless Steel Pressure Storage Tank with a usable pure water draw down of approximately 1.75-2 gallons of purified water when completely drained. Stainless Steel construction that won’t rust and deteriorate over time. Internal heavy-duty butyl/EPDM diaphragm or bladder, made from thick butyl rubber that meets FDA requirements for potable water, offering excellent air retention and flexibility for consistent pressureusable pure water draw down. 1/4″ MPT connection. Dimensions: 14″ H x 10″ D. 100 psi max working pressure. USA-manufactured.
This unique, elegant, attractive, heavy-duty, long-reach Air-gap faucet enhances the décor of any kitchen. It features a 1/4 turn, ceramic disc, single lever operation which mimics and complements most kitchen faucets. The flow rate is superior to that of other conventional reverse osmosis faucets when dispensing water from the reverse osmosis storage tank. It is machined from solid lead-free brass with a more durable, longer-lasting rhodium chrome finish. It is molded, machined, and hand assembled in Los Angeles, California. The inlet water connection is 3/8″ for an enhanced water dispensing flow rate. It has a separate Air-gap module base with 1/4″ and 3/8″ brass barb connections at the base to comply with UPC plumbing code drain installation. Mounts in a standard 1 1/8″-1 1/4″ hole on the kitchen sink or countertop. USA-manufactured.
The UPS-5T Installation Kit Includes:
1. 10′ ft. White 3/8″ Poly Tubing, 10′ ft. White 1/4″ Poly Tubing, 4′ ft. Black 3/8″ Poly Tubing, 5′ ft. Black 1/4″ Poly Tubing
2. 3/8″ x 1.5″ Drain Saddle Clamp
3. 3/8″ Angle Stop Adapter with integrated 1/4″ Shut-off Valve
4. 3/8″ Poly Storage Tank Shutoff Valve 1/4 turn
5. 7/16″ x 3/8″ Poly Faucet Adapter
SPECIFICATIONS UPS-5T
