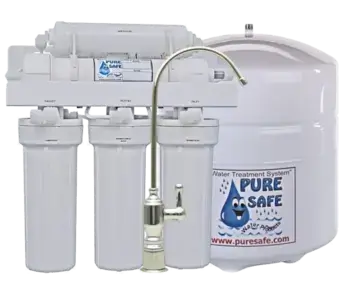

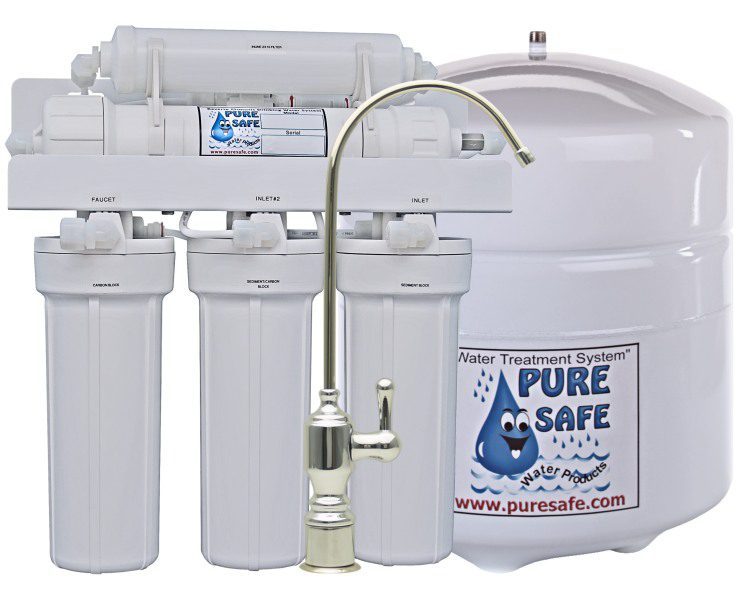

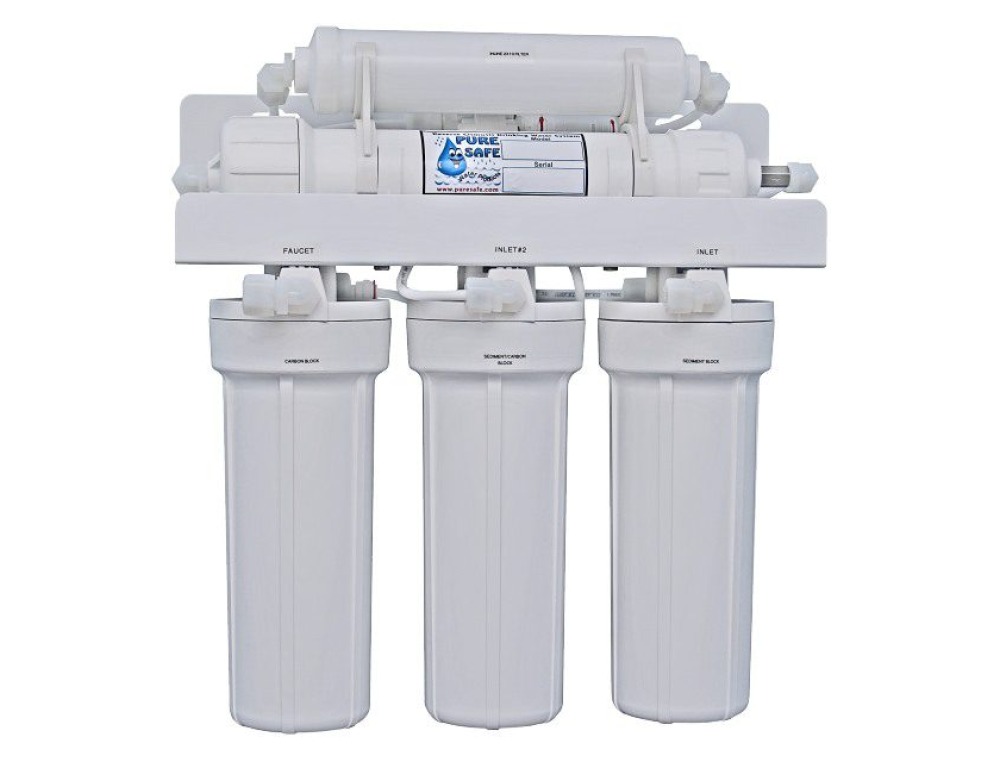

The EPS-5T is assembled here in our warehouse at Water Fixers. This 5-filter cartridge system uses all USA-manufactured components and USA-manufactured filter cartridges. We designed this system for individuals and companies that desire uncompromising, ultimate water quality, purity, and safety results. Superior construction, quality, and longevity when compared to the CPS-5T and SPS-5T. 3/8″ tubing to the storage tank and dispensing faucet for higher flow delivery when dispensing water. Higher water pressure rating than the CPS-5T and SPS-5T. It also includes a 4-gallon storage tank and a luxurious air-gap dispensing faucet. No one offers the quality of filters that we include.
Assembled here in our warehouse at Water Fixers. This 5-filter cartridge system uses all USA-manufactured components and USA-manufactured filter cartridges. We designed this system for individuals and companies that require an uncompromising construction with the safest and purest water quality processed. The EPS-5T has superior construction, quality, and longevity when compared to the CPS-5T and SPS-5T. 3/8″ tubing to the storage tank and dispensing faucet for higher flow delivery when dispensing water. Higher water pressure rating than the CPS-5T and SPS-5T. The filters included are a USA-manufactured Sediment Pre-filter, a USA-manufactured Dual-purpose Sediment and Chlorine removal secondary Pre-filter, a USA-manufactured TFC Membrane Filter, a USA-manufactured Carbon Block Post-membrane Filter, and a USA-manufactured Post Carbon Block Filter. It also consists of a 4-gallon storage tank and a luxurious air-gap dispensing faucet. No one offers the quality of filters that we include.

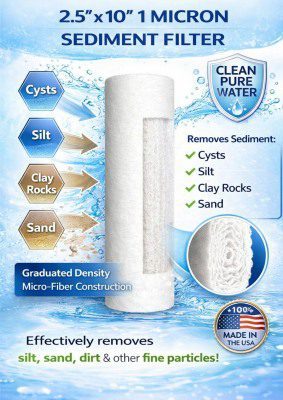

2.5" x 10" graded density, graduated depth, micro-fiber filter cartridge. Molded micro-fiber material with a nominal 1 micron particle filtration rating for cysts, silt, clay, sediments, sand, rocks, etc. The primary function is to prevent super-fine sediments from fouling the membrane filter. USA-manufactured. NOTE: The graduated depth micro-fiber design becomes extremely dense in material weight from the outer perimeter of the cartridge to the center core, providing graduated depth filtration and far superior dirt retention. Service Interval: Recommended every 12 months
2.5" x 10" Patented two filter cartridges in one cartridge technology. Featuring a high-density, coconut shell, powdered carbon impregnated pleated-fiber filter cartridge. Molded and pleated micro-fiber material with a nominal 1 micron particle filtration rating with each fiber impregnated with coconut shell powdered carbon to remove silt, clay, sediments, sand, rocks, cysts (giardia, cyclospora, cryptosporidium, e-coli), and adsorb hydrocarbon gases (chlorine, ammonia, chloramines), VOC's (toluene, benzene, xylene, MTBE, perchlorate), and other contaminants. The primary function is to provide two stages of filtration in one single cartridge to prevent sediments, gases, and chemicals from fouling or damaging the membrane filter. USA-assembled. NOTE: Coconut Shell Carbon has twice as many cell sites, adsorbs twice as fast, and retains twice as many gases and VOC's as Bituminous Carbon; therefore, it is clearly superior in performance! Service Interval: Recommended every 12 months

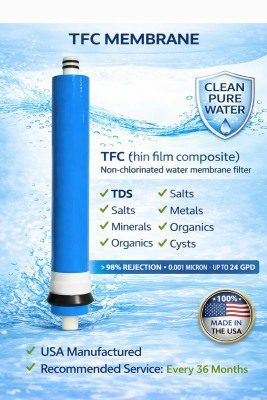

TFC (thin film composite) Non-chlorinated water membrane filter cartridge. Particulate Filtration rating at .001 micron. Removes Total Dissolved Solids (TDS), Salts, Metals, Minerals, Organic Matter, Pyroxene’s, Sub-micron Colloidal matter, Cysts and Bacteria, and other contaminants from an untreated water supply. Cannot be used with a chlorinated water source. Average rejection ratio: > 98%. Rated production up to 24 gpd. USA-manufactured. Service Interval: Recommended every 36 months
2" x 10" sonically welded, plastic molded inline filter housing encapsulating a solid pressed carbon block cartridge that is typically installed inline between tubing. Featuring a high-density, high-volume, coconut shell, powdered carbon briquette, with a nominal 1/2 micron particle filtration rating to remove cysts (giardia, cyclospora, cryptosporidium, e-coli), and adsorb hydrocarbon gases (chlorine, ammonia, chloramines), and VOC's (toluene, benzene, xylene, MTBE, perchlorate), and other contaminants. The primary function is to provide post-membrane filtration and remove Chlorine, Chloramines, Hydrocarbon Gases, VOC's, and Cysts when filling the storage tank. USA-manufactured. NOTE: Coconut Shell Carbon has twice as many cell sites, adsorbs twice as fast, and retains twice as many gases and VOC's as Bituminous Carbon; therefore, it is clearly superior in performance! Service Interval: Recommended every 12 months

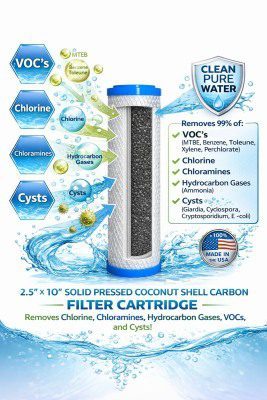

2.5" x 10" solid pressed coconut shell carbon block filter cartridge. Featuring a high-density, high-volume, coconut shell, powdered carbon briquette, with a nominal 1/2 micron particle filtration rating to remove cysts (giardia, cyclospora, cryptosporidium, e-coli), and adsorb hydrocarbon gases (chlorine, ammonia, chloramines), and VOC's (toluene, benzene, xylene, MTBE, perchlorate), and other contaminants. The primary function is to provide the safest, healthiest, purest water possible by removing Chlorine, Chloramines, Hydrocarbon Gases, VOC's, and Cysts when dispensing water to the faucet. USA-manufactured. NOTE: Coconut Shell Carbon has twice as many cell sites, adsorbs twice as fast, and retains twice as many gases and VOC's as Bituminous Carbon; therefore. it is clearly superior in performance! Service Interval: Recommended every 12 months
Water Fixers Filter Cartridge Removal Benefits: VOCs, Pesticides, Herbicides, Insecticides, Hydrocarbon Gases, Chlorine, Cysts, Silt, Clay, Salt, Heavy Metals, Minerals, Bacteria
1-1 “Patented” Reverse Osmosis Membrane Filter technology that uses only 1 gallon of drain water to produce 1 gallon of pure drinking water. After years of research and development, this new water-saving membrane is now affordable and available to upgrade and replace your old technology membrane. Our Pure Safe Water Products Reverse Osmosis systems employ 3-1 ratio membranes and standard equipment, but we now offer the 1-1 ratio membrane as an affordable option. If you are looking for the ultimate water savings, then you just found the solution. This membrane still employs the TFC (thin film composite), Non-chlorinated water membrane filter cartridge. Particulate Filtration rating is at .001 micron. It removes Total Dissolved Solids (TDS), Salts, Metals, Minerals, Organic Matter, Pyroxene’s, Sub-micron Colloidal matter, Cysts and Bacteria, and other contaminants from an untreated water supply. It cannot, however, be used with a chlorinated water source. Average rejection ratio: > 98%. Rated production up to 50 gpd. USA-manufactured. Service Interval: Recommended every 24-36 months

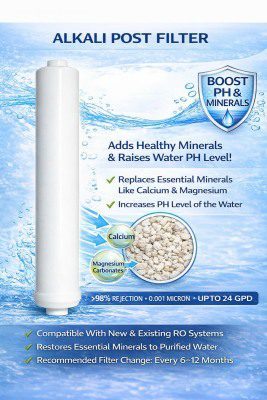

An Alkali Post-filter is available to add on to any new reverse osmosis drinking water filter system, or to retrofit any pre-existing reverse osmosis system. The Alkali filter cartridge contains calcium and magnesium carbonates, essentially hard water minerals that are dissolved into the water stream when dispensing water from the storage tank to the faucet. Adding the hard water minerals back into the water can raise the PH level of the purified water if that is a concern for the individual. Sometimes, when the osmosis membrane filter removes most or all of the dissolved minerals diluted in the tap water, the PH level drops. To raise the PH level back up, you would install an Alkali filter cartridge. The internal filter media is sacrificial and must be replaced periodically. The frequency of the filter change interval will depend on water usage and water quality.
4-gallon Steel Pressure Storage Tank with a usable pure water draw down of approximately 1.75-2 gallons of purified water when completely drained. Steel construction with a powder coat finish. Internal heavy-duty butyl/EPDM diaphragm or bladder, made from thick butyl rubber that meets FDA requirements for potable water, offering excellent air retention and flexibility for consistent pressureusable pure water draw down. 1/4″ MPT connection. Dimensions: 14″ H x 10″ D. 100 psi max working pressure. USA-manufactured.
This unique, elegant, attractive, heavy-duty, long-reach Air-gap faucet enhances the décor of any kitchen. It features a 1/4 turn, ceramic disc, single lever operation which mimics and complements most kitchen faucets. The flow rate is superior to that of other conventional reverse osmosis faucets when dispensing water from the reverse osmosis storage tank. It is machined from solid lead-free brass with a more durable, longer-lasting rhodium chrome finish. It is molded, machined, and hand assembled in Los Angeles, California. The inlet water connection is 3/8″ for an enhanced water dispensing flow rate. It has a separate Air-gap module base with 1/4″ and 3/8″ brass barb connections at the base to comply with UPC plumbing code drain installation. Mounts in a standard 1 1/8″-1 1/4″ hole on the kitchen sink or countertop. USA-manufactured.

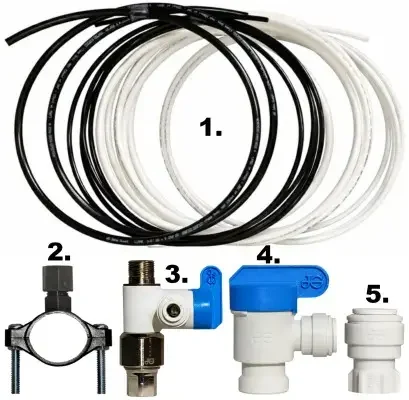

The EPS-5T Installation Kit Includes:
1. 10′ ft. White 3/8″ Poly Tubing, 10′ ft. White 1/4″ Poly Tubing, 4′ ft. Black 3/8″ Poly Tubing, 5′ ft. Black 1/4″ Poly Tubing
2. 3/8″ x 1.5″ Drain Saddle Clamp
3. 3/8″ Angle Stop Adapter with integrated 1/4″ Shut-off Valve
4. 3/8″ Poly Storage Tank Shutoff Valve 1/4 turn
5. 7/16″ x 3/8″ Poly Faucet Adapter
SPECIFICATIONS EPS-5T
