SMART WATER SHUTOFF • LEAK PROTECTION • CENTRAL COAST
Moen Flo is installed directly on the home’s main water line. It continuously monitors water activity and can automatically close its internal valve during qualifying leak events, adding a layer of protection when you are home, away or asleep.
Water Fixers Plumbing & Filtration • Central Coast • CA License #719792
Moen now refers to this product as the Moen Flo Shutoff; many homeowners still know it as the Flo Smart Water Monitor and Shutoff. It is an inline monitor and automatic shutoff valve that tracks flow, pressure and temperature, sends alerts, runs MicroLeak tests and can close the home’s water during qualifying critical events. It does not mechanically reduce pressure like a PRV, and it does not physically locate a concealed leak.
See live water-flow information and monitor pressure and temperature conditions at the incoming main line.
Receive app notifications and other configured alerts when the system identifies unusual or potentially dangerous water activity.
The integrated valve can close the home’s water supply automatically during qualifying events, and homeowners can also control the valve remotely through the app.
Moen’s MicroLeak technology briefly isolates the plumbing and watches pressure stability to look for very small leaks, including leaks too small to appear as normal flow.
HOW MOEN FLO WORKS
1. Inline device on the main line. Moen Flo is plumbed directly into the incoming water service.
2. Continuous sensing. Internal sensors monitor water flow, pressure and temperature.
3. Learning and alerts. FloSense learns household usage patterns and can flag activity that looks abnormal.
4. Valve response. During qualifying events, the device can automatically close the main water supply. The valve can also be operated remotely or manually.
5. Daily leak checks. Automatic MicroLeak tests briefly isolate the system and watch for pressure loss that may indicate a very small leak.
Moen Flo can identify abnormal flow, pressure changes and failed MicroLeak tests, but those signals do not always tell you exactly which fixture, pipe or underground line is responsible. A smart shutoff helps limit damage; plumbing diagnosis still determines what actually failed.
Useful for spotting unusual use, pressure changes, small pressure-loss leaks and serious events that may justify shutting off the water.
If the cause is not obvious, professional leak detection and plumbing inspection can narrow down the actual source and determine whether pressure, a fixture, a valve or a hidden pipe is involved.
The correct repair may involve a toilet, supply line, valve, water heater connection, underground service line, concealed pipe or another component.

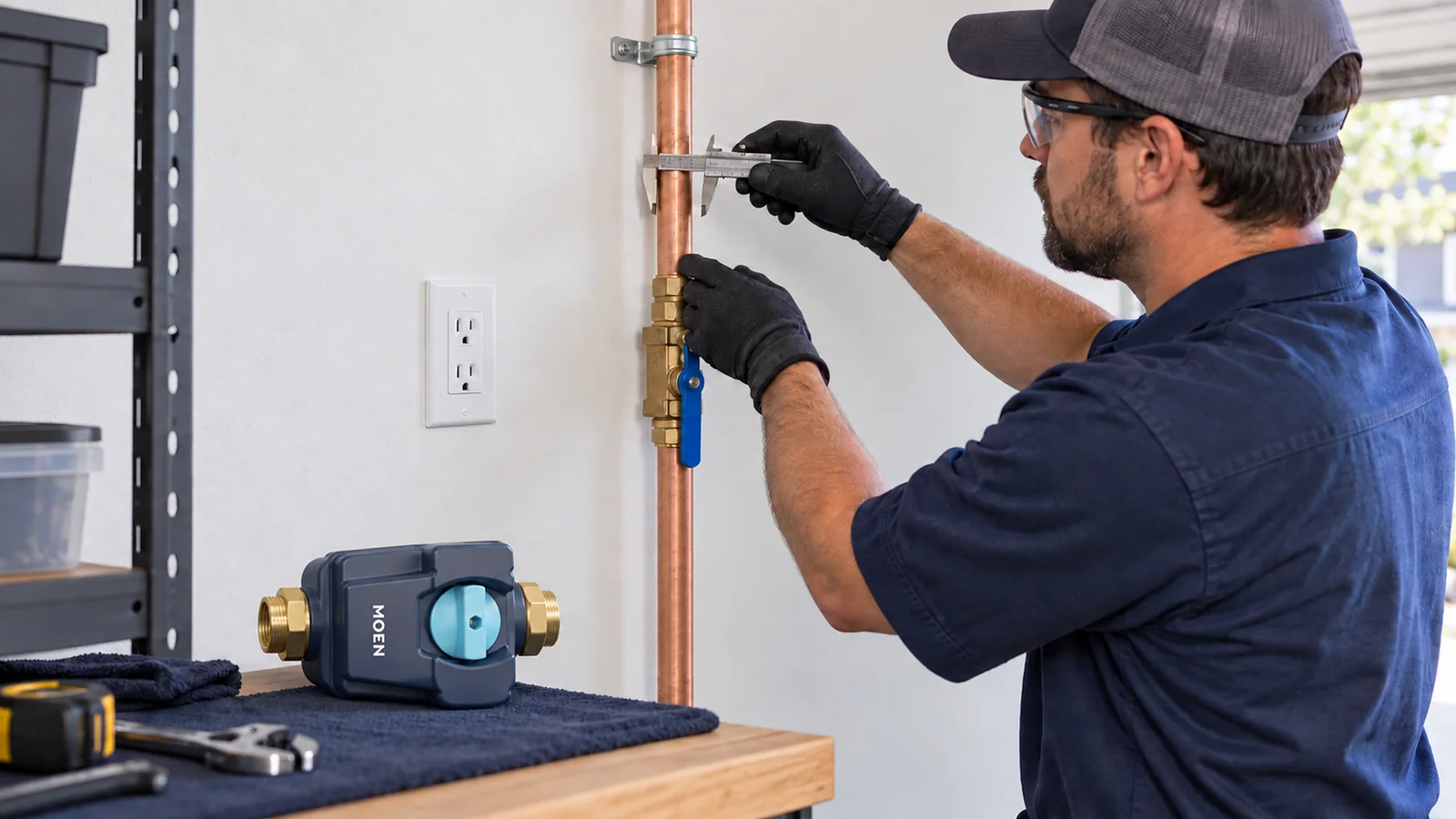

BEFORE INSTALLATION
Moen’s current installation guidance places the Flo Shutoff on the home’s potable main after the existing manual shutoff and pressure-reducing valve, when a PRV is present, and before the plumbing branches to fixtures. Planning also needs a nearby 120V outlet, usable Wi-Fi, service access and a pipe arrangement that can be isolated safely.
The device should not be installed on hot-water distribution or required fire-sprinkler/suppression piping. Galvanized piping, well systems, irrigation branches and sediment-control needs should be reviewed against current Moen requirements before installation.
WHEN MOEN FLO NOTIFIES YOU
A smart-water alert can be caused by more than a burst pipe. Possible causes include:
If the source is not obvious, Water Fixers can diagnose the plumbing rather than guessing from the app alone.
CURRENT MOEN FLO TOOLS
Moen’s current Flo platform combines continuous monitoring with app-based controls, alerts and automatic testing. The Moen Flo App can show live water activity, pressure information, usage history, system status and remote valve control.
Track current water activity and pressure conditions from the app and review alerts when usage differs from expected household patterns.
Moen Flo can automatically run a pressure-loss test by briefly closing the valve and watching pressure stability. Moen states the system can detect leaks as small as about one drop per minute under suitable test conditions.
Home, Away and Sleep modes change how the system handles expected water use. Sleep Mode is intended for planned unusual use and temporarily pauses alert notifications and automatic shutoff, so homeowners should understand the active mode before relying on automatic protection.
INSTALLATION + PLUMBING QUESTIONS
Unlike a meter-mounted monitor, Moen Flo is installed inline on the private potable-water main. Pipe size, manual shutoff access, PRV location, irrigation and fire-sprinkler branches, power, Wi-Fi and service clearance all matter. Well systems and galvanized piping can require additional manufacturer-specific planning, including sediment protection or piping changes.
WHOLE-HOME LEAK PROTECTION
These technologies complement one another, but they solve different problems. The best choice depends on whether the goal is meter-based monitoring, automatic main-water shutoff, pressure control or professional leak diagnosis.
Flume watches water use at a compatible meter and sends alerts without being plumbed inline. It does not normally close the main water valve by itself.
Moen Flo is installed inline, monitors water conditions and can automatically close its valve during qualifying events. It is the automatic-shutoff member of this Water Fixers leak-protection family.
A PRV mechanically reduces excessive incoming pressure. It can protect plumbing from pressure stress, but it does not send leak alerts or automatically shut the water off because of a leak.
Moen Flo is a plumbing installation, not just a sensor attached to a meter. The installation location has to work with the main shutoff, PRV, branch layout, pipe material, power and network signal while keeping required fire-suppression piping outside the automatic-shutoff path. Water Fixers can evaluate the plumbing first, install the device on an appropriate private main, and separate device alerts from the plumbing problem that caused them.
Direct answers about automatic shutoff, MicroLeak tests, pressure monitoring, installation and how Moen Flo fits with Flume, PRVs and professional leak detection.
Moen now calls the product the Moen Flo Shutoff. It is an inline smart valve that monitors flow, pressure and temperature, sends alerts, runs MicroLeak tests and can automatically shut off the home’s water during qualifying critical events.
Moen’s current guidance places the Flo Shutoff on the incoming potable-water main after the manual shutoff and existing PRV, when present, and before the plumbing branches to fixtures. It should not be installed on hot-water distribution or required fire-sprinkler/suppression piping.
Yes. The Moen Flo Shutoff uses a standard 120V outlet for power, and app monitoring, alerts and remote control depend on Wi-Fi/network connectivity. Power and signal should be confirmed before modifying the pipe.
Moen’s current installation guidance places the Flo Shutoff downstream of the existing manual shutoff and pressure-reducing valve, when a PRV is present, and before the home plumbing branches. Final layout still has to follow the actual plumbing, manufacturer instructions and applicable code.
Choose your service area for local installation guidance about private plumbing, utility boundaries, manual shutoffs, pressure regulation, power and service access.
Water Fixers can evaluate the main water line, pressure setup and installation location, then install Moen Flo as part of a practical whole-home leak-protection plan.
