Moen Flo Smart Water Shutoff Installation in Guadalupe, CA

Plan the private main line first, then add smart monitoring and automatic shutoff protection.

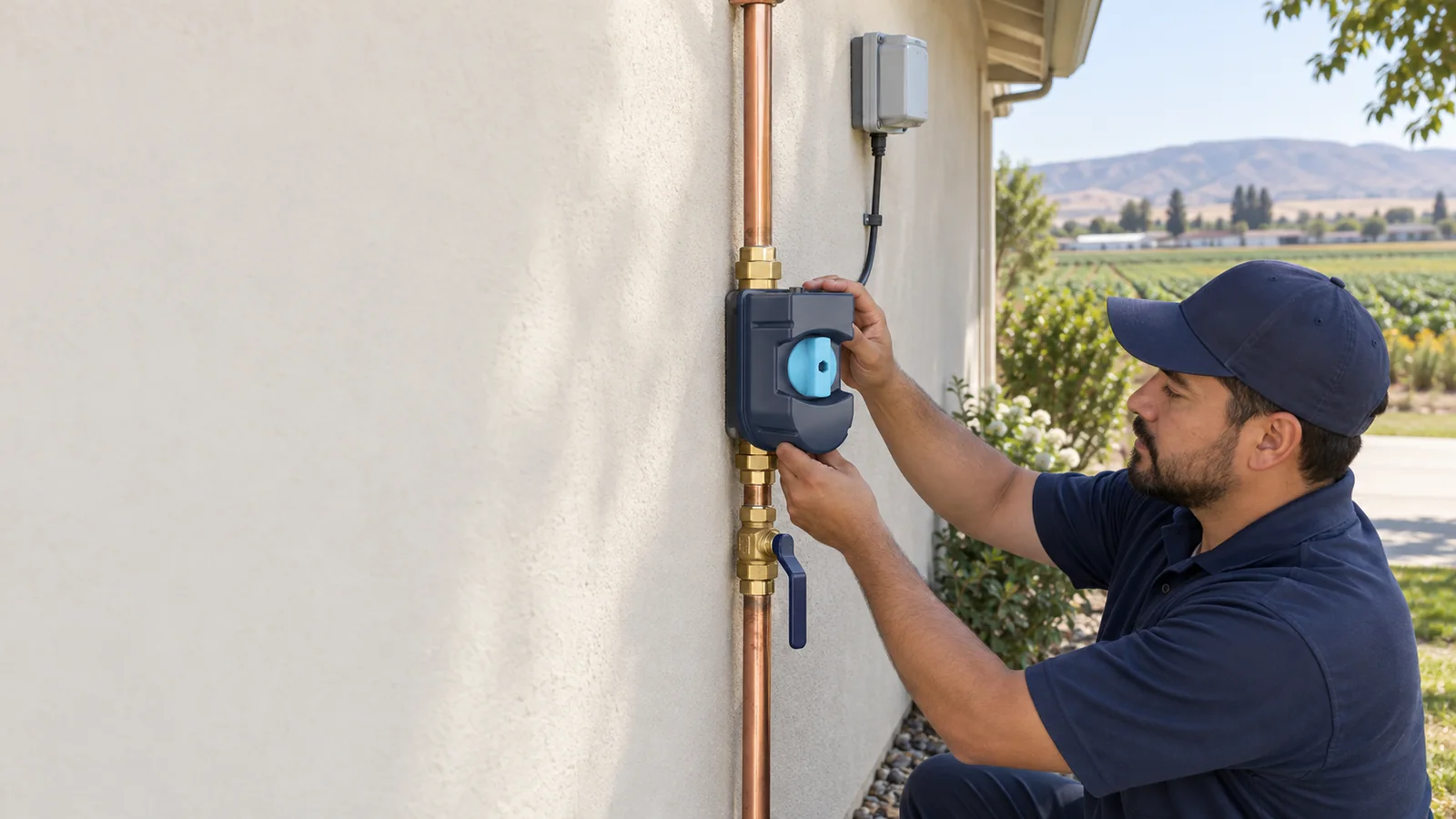

Moen Flo smart water shutoff installation in Guadalupe adds inline water monitoring and automatic shutoff capability to the home’s private domestic main. A useful site check looks at isolation, pressure regulation, pipe material and size, safe electrical power, network reach and whether the device will remain accessible after installation.

Know what the smart shutoff does—and what still needs plumbing diagnosis

Monitoring + automatic shutoff

Moen Flo is installed inline on the main serving the home. It monitors household water activity and can close its internal valve during configured qualifying events. The valve can also be controlled through the app and at the device, so installation planning should keep both plumbing access and device access practical.

Pressure reading is not pressure regulation

Moen Flo can measure pressure, but it does not mechanically reduce incoming pressure. A pressure-reducing valve (PRV) still handles pressure regulation, so pressure problems should be evaluated separately from smart-shutoff monitoring.

An alert is not the exact leak location

Automatic water isolation can reduce ongoing flow during configured qualifying events, but an alert does not necessarily identify the exact failed fixture, pipe or appliance connection. When the source is unclear, use leak diagnosis to connect the alert to the actual plumbing problem.

Plan the plumbing sequence before the pipe is cut

A practical installation order is the private manual shutoff, the mechanical PRV when present, then Moen Flo on the cold-water main before domestic branches. Current Moen guidance places the device after the water meter, shutoff and PRV when applicable, and says not to install it on hot-water distribution or fire-suppression piping.

Plan the private-side installation order in Guadalupe

Guadalupe water guidance describes the house valve outside the home, usually near a hose bib, and pressure regulators between the meter and house. City code also separates the utility boundary at the meter: connections through the meter remain City property, while connections beyond the meter toward the building are on the private side. Moen Flo should be planned on appropriate private domestic piping downstream of the manual shutoff and PRV when present.

That sequence preserves separate jobs: the manual valve provides ordinary isolation, the PRV handles mechanical pressure reduction, and Moen Flo adds monitoring plus qualifying automatic water isolation.

The best location combines correct private-side plumbing with reliable power, 2.4 GHz Wi-Fi and future service access. For local reference, see the City water information and Guadalupe Municipal Code §13.08.055.

For long-term service, the device should stay accessible rather than being buried behind an inaccessible finish. The final layout should keep the manual shutoff, PRV and smart device serviceable without confusing their separate functions.

What Water Fixers checks before installation

A good installation review considers the plumbing and smart-device requirements together. That helps avoid choosing a convenient-looking pipe location that lacks reliable power, Wi-Fi, isolation or future maintenance access.

Check the installation location

Verify pipe size and material, usable pipe layout, maintenance clearance, a standard power source within reach of approved cabling, and dependable 2.4 GHz Wi-Fi before modifying the line.

Install and commission the device

Plumb the current Moen Flo unit inline on the appropriate domestic cold-water main, restore water carefully, inspect the new joints, then complete device setup and test the valve before leaving it in service.

Use alerts as a starting point

After installation, investigate unexplained alerts, failed leak checks or abnormal water use instead of assuming the device identifies the exact plumbing failure. Use the alert as evidence that guides the next diagnostic step.

Confirm the private plumbing path

Trace the home-side main from the utility meter toward the building and identify the manual shutoff, PRV and any branches that should remain outside the automatic-shutoff path. Confirm that required fire-protection piping is not controlled by the domestic smart valve.

Flume, a PRV and Moen Flo solve different problems

Flume: meter-based monitoring

Flume is a meter-based monitor for compatible meters and normally does not close the house main by itself. Moen Flo is installed inline on the domestic water line and adds automatic water-isolation capability during qualifying events.

Moen Flo: inline monitoring + shutoff

Moen Flo is plumbed into the home-side main and can close its internal valve during configured qualifying events. That inline valve is the key difference from monitor-only approaches.

PRV: mechanical pressure control

A PRV physically regulates incoming pressure. It does not provide smart leak alerts or replace the automatic water-isolation function of Moen Flo, so pressure regulation remains a separate plumbing function.

After an alert, find the plumbing cause

A Moen Flo alert can point to abnormal use or pressure behavior without identifying the exact source. Start by ruling out expected water use and obvious fixtures; when the source remains unclear, Guadalupe leak detection can connect the smart-device warning to the actual plumbing problem.

Moen Flo installation questions for Guadalupe

Does Moen Flo automatically shut off water at a Guadalupe home?

It can close its internal valve during configured qualifying events when the system is powered, connected and set up for that response. Automatic shutoff is added protection, not a guarantee that every leak will be detected or stopped before damage occurs.

Where should Moen Flo be installed in Guadalupe?

On suitable private domestic cold-water piping after the meter and manual shutoff, and after the PRV when present, before the household plumbing branches. The final location also needs power, 2.4 GHz Wi-Fi and service access.

Does Moen Flo replace a pressure regulator?

No. Moen Flo can monitor pressure, but a PRV is the mechanical device that reduces excessive incoming pressure. Keep pressure regulation and smart monitoring as separate functions.

Does Moen Flo replace professional leak detection?

No. It can reveal abnormal water use or pressure behavior, but it may not physically locate a concealed, slab or underground leak. Professional diagnosis may still be needed when the source is unclear.

Does the device need power and Wi-Fi?

Yes. Current Moen requirements call for AC power and 2.4 GHz Wi-Fi for smart monitoring, alerts, app communication and remote valve control. Confirm both before modifying the plumbing.

Should Moen Flo control a residential fire-sprinkler line?

No. Current Moen installation guidance says not to install the Flo Shutoff on fire-sprinkler or suppression systems. The domestic-water layout should be reviewed so required fire-protection piping remains outside the smart shutoff path.

Related water-protection and plumbing services

Manual shutoff needs attention

If the private house shutoff is leaking, seized or cannot reliably isolate the home, correct that control point before depending on it for future smart-device service.

Pressure is the concern

If the goal is to reduce high incoming pressure, start with pressure testing and the PRV—not the smart shutoff. Moen Flo can report pressure information, but it is not a mechanical pressure regulator.

Leak source is unknown

If water use is abnormal but the source is hidden, move from monitoring to professional diagnosis. The dedicated Guadalupe leak-detection page is the appropriate next step when the physical source is still unknown.

Ready to plan Moen Flo installation in Guadalupe?

Water Fixers can review the home-side main line, manual shutoff, PRV, pipe layout, power, Wi-Fi and service access, then install Moen Flo where the plumbing and device requirements fit the property.
