WATER FIXERS SOFTENER MODEL • PREMIUM TWO-TANK SYSTEM

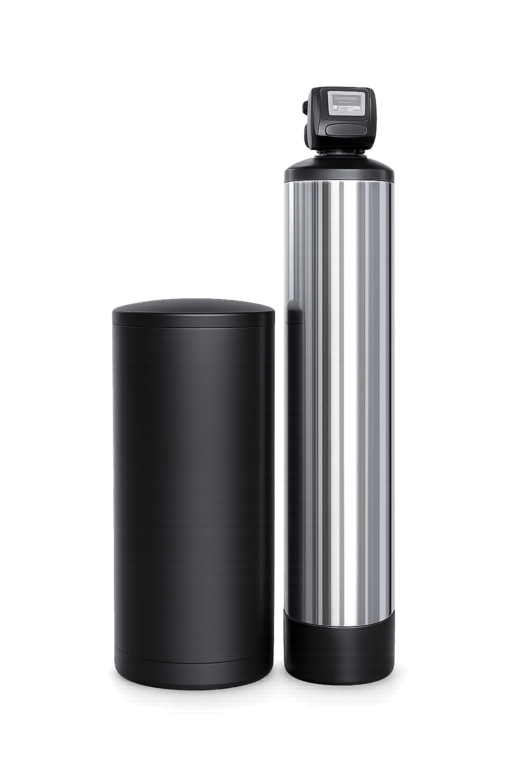

SmartSoft Water Softener
A premium high-capacity two-tank softener for homes with higher household demand and simultaneous flow.
Quick answer: SmartSoft uses 2.0 cu. ft. of 10% crosslink resin and is published at 48,000 grains at a 6 lb salt dose, with 14 GPM nominal and 18 GPM peak flow.
Water Fixers lists it as a typical fit for homes under 3,500 sq. ft. and households of 1–6 people, but final sizing should use measured hardness, actual household demand, simultaneous flow, plumbing conditions and installation space—not square footage alone.
What this page covers: SmartSoft specifications, fit, installation considerations, warranty details and the service options available after purchase.
SMARTSOFT AT A GLANCE
The four numbers to understand first
Typical household
1–6 people. Use as a starting range, not a stand-alone sizing rule.
Published capacity
48,000 grains at a 6 lb salt dose.
Published flow
14 GPM nominal / 18 GPM peak.
Resin
2.0 cu. ft. of 10% crosslink resin.
Maximum working pressure: 90 PSI. Published equipment figures describe the model; they do not replace a property-specific check of hardness, pressure, plumbing, drain routing, service clearance and peak-use demand.
WHERE IT SITS IN THE LINEUP
Why choose SmartSoft instead of a smaller Water Fixers model?
Higher published flow
SmartSoft has the highest published nominal and peak flow in the current five-model Water Fixers lineup: 14 GPM nominal and 18 GPM peak. Higher published flow only helps when the home’s actual simultaneous demand and plumbing can use it.
Larger resin volume and salt storage
Its 2.0 cu. ft. of 10% crosslink resin and 350 lb published salt-storage capacity are the largest in the current lineup. That also means the two-tank system needs adequate installation and service space.
Metered up-flow control
The published control package includes an electronic valve, adjustable multi-cycle programming, proportional brining, variable reserve capacity, up-flow regeneration, a flow-meter totalizer and automatic regeneration.
SmartSoft is the premium high-capacity option in the current lineup. If the home does not need its capacity or flow, compare SoftFlo C, SoftFlo S, SoftFlo SE and SoftFlo SEC before choosing.
COMPLETE MODEL REFERENCE
SmartSoft specifications and service details
These are the current Water Fixers published figures for this model, grouped together so you can verify the exact equipment instead of relying on a shortened sales summary.
Performance
Resin volume: 2.0 cu. ft.
Resin type: 10% crosslink
Capacity: 48,000 grains @ 6 lb salt
Nominal flow: 14 GPM
Peak flow: 18 GPM
Maximum working pressure: 90 PSI
Controls & regeneration
Control valve: Electronic
Programming: digital screen with hardness, capacity, salt pounds and time settings plus adjustable multi-cycle programming
Efficiency features: proportional brining and variable reserve capacity
Regeneration: up-flow
Metering: flow-meter totalizer with automatic regeneration
Dimensions & connections

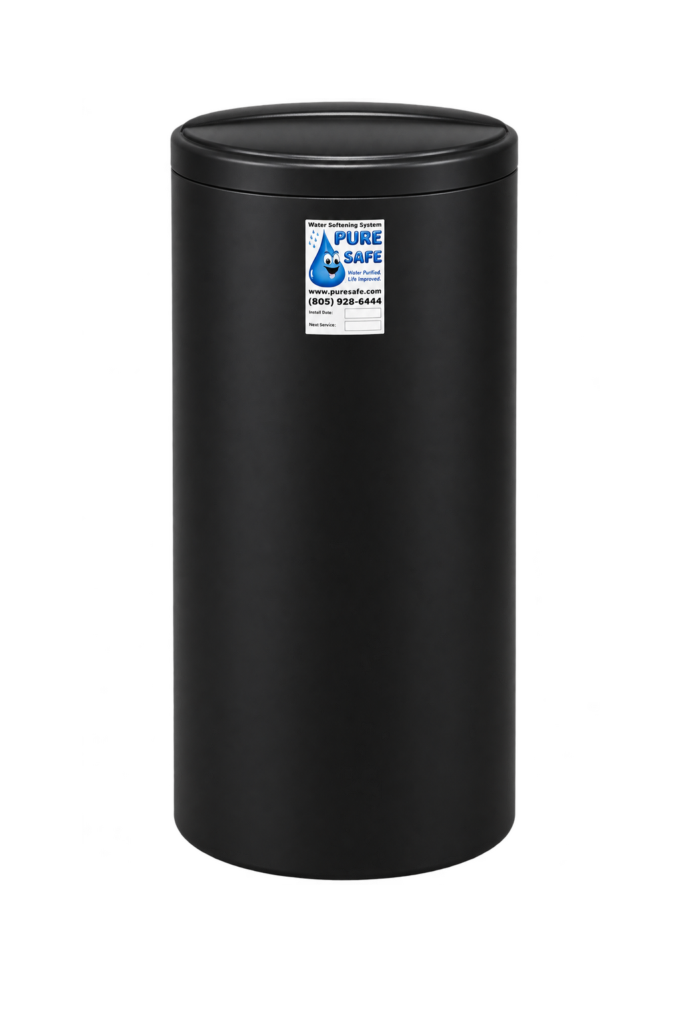

Brine tank: 40 in. H × 18 in. D

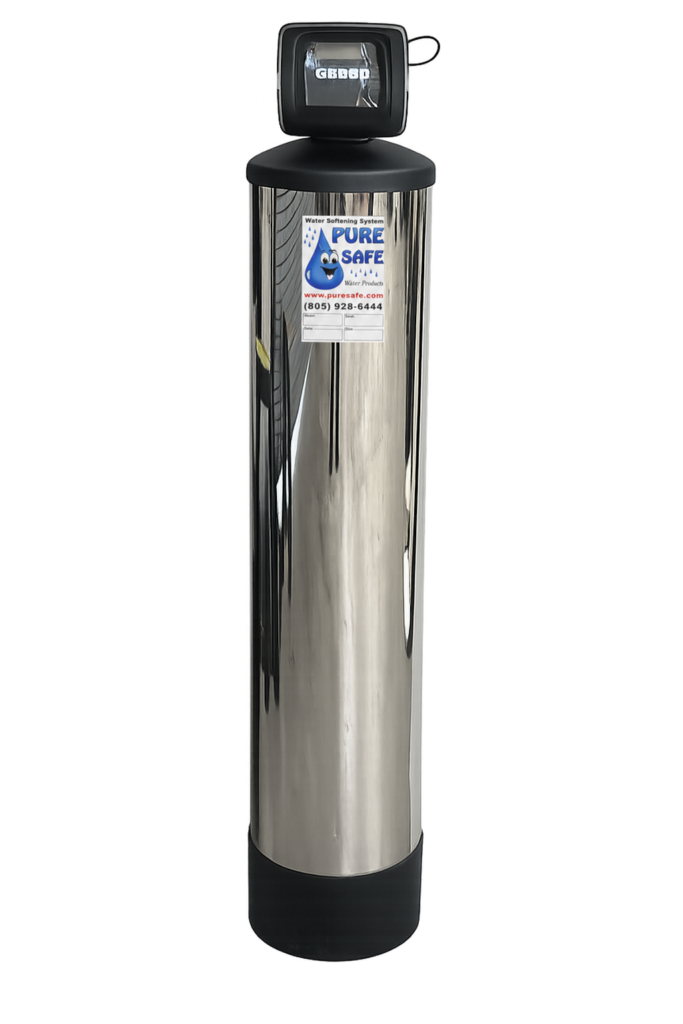

Resin tank: 12 in. D × 52 in. H
Salt storage: 350 lb
Brine well: safety overflow float
Valve ports: 1 in. inlet/outlet
Bypass: 1 in.
Published warranty
Control valve: 1 year, with electronics, piston, seals, spacers and brine piston excluded
Resin tank: 3 years
Salt tank: 3 years
Confirm the written warranty, exclusions, registration requirements and labor terms in effect at purchase.
Installation clearance: leave practical room for the control valve, salt loading, bypass operation, drain/brine routing and future service. Final fit should be checked at the property.
SIZING BEFORE SELECTION
Do not choose SmartSoft from square footage alone
The “under 3,500 sq. ft. / 1–6 people” range is useful for orientation, but a softener is really being asked to handle a hardness load and a flow demand.
Water Fixers should confirm the water hardness, household use, likely simultaneous fixtures, current plumbing and installation conditions before treating the published household range as the final answer.
MATCH THE EQUIPMENT TO THE PROBLEM
SmartSoft is a hardness-treatment model—not a universal water-treatment system
Hardness / scale goal
Ion-exchange softening is the relevant whole-house treatment path when hardness is confirmed and scale reduction is the goal.
Taste, odor or sediment
Do not assume those symptoms are solved by a softener. Testing and filtration may be the right path instead of—or in addition to—softening.
Drinking-water goals
Point-of-use drinking-water concerns may call for reverse osmosis or another treatment selected for the actual water-quality target.
SERVICE ACCESS MATTERS
Plan for access after installation day
The bypass, control valve, brine components and drain routing should remain reachable so the system can be maintained and diagnosed later.
Planning a new or replacement system? Use the installation page. For routine care, use maintenance. If an existing softener is leaking, not regenerating or allowing hardness to return, use the repair page.
COMPARE THE FIVE-MODEL LINEUP
SmartSoft is the high-capacity option—not the default for every home
Use these published ranges to understand where each model sits, then size from the actual water and household demand. Do not assign models by city or square footage alone.
SoftFlo C
Compact all-in-one • typical fit under 1,400 sq. ft. • 1–3 people • 18,000 grains @ 9 lb • 5 / 8 GPM.
SoftFlo S
Budget two-tank • typical fit under 1,800 sq. ft. • 1–4 people • 24,000 grains @ 9 lb • 7 / 10 GPM.
SoftFlo SE
Higher-flow two-tank • typical fit under 2,400 sq. ft. • 1–4 people • 36,000 grains @ 9 lb • 10 / 14 GPM.
SoftFlo SEC
Higher-efficiency cabinet • typical fit under 2,500 sq. ft. • 1–4 people • 36,000 grains @ 6 lb • 12 / 15 GPM.
SmartSoft
This model • premium high-capacity two-tank • typical fit under 3,500 sq. ft. • 1–6 people • 48,000 grains @ 6 lb • 14 / 18 GPM.
SMARTSOFT FIT CHECK
Questions worth answering before you choose it
Is hardness actually confirmed?
Start from a current hardness result or other reliable property-specific information rather than choosing a softener from symptoms alone.
Is 14 GPM nominal flow appropriate?
Think about simultaneous showers, faucets, appliances and the home’s plumbing. Peak flow is not a substitute for realistic service-flow planning.
Does the two-tank layout fit?
Verify room for both tanks, salt loading, bypass access, control-valve service and appropriate drain/brine routing.
Does the capacity fit the hardness load?
Capacity is stated at a 6 lb salt dose. Final regeneration expectations depend on hardness, water use and programmed settings.
Do you need different treatment too?
Odor, sediment, staining or drinking-water goals may require testing and another treatment path rather than a larger softener.
How will the system be serviced later?
Keep maintenance access and the repair path in mind before equipment is placed tightly against walls or other mechanical systems.
DIRECT ANSWERS
SmartSoft water softener FAQs
NEXT STEP
Use the page that matches what you need now
Still comparing models?
Open the five-model Water Fixers comparison and review capacity, flow and model positioning side by side.
Ready to plan installation?
Use the installation/replacement page for plumbing, bypass, drain, service-clearance and replacement planning.
Already have a softener problem?
Use the service-and-repair page if an existing softener is leaking, not regenerating, not using salt or allowing hardness to return.
Want to know if SmartSoft actually fits your home?
Water Fixers can review the hardness, household demand, plumbing, available space and the rest of the five-model lineup before the equipment decision is made.
Water Fixers Plumbing & Filtration • California’s Central Coast • License #719792
