WATER FIXERS • HIGHER-FLOW TWO-TANK
SoftFlo SE Water Softener
A 1.5 cu. ft. two-tank softener for homes that need more capacity and flow than SoftFlo S.
SoftFlo SE uses 1.5 cu. ft. of 8% crosslink resin with a published capacity of 36,000 grains at 9 lb salt. Published flow is 10 GPM nominal and 14 GPM peak. Final sizing should use measured hardness, household demand, expected simultaneous flow, plumbing conditions and the available installation space.
AT-A-GLANCE SPECIFICATIONS
SoftFlo SE quick reference
These are typical fit ranges and published equipment values—not a substitute for hardness testing and demand-based sizing.
TYPICAL HOME
Under 2,400 sq. ft.
Use as a starting range, not a guarantee.
HOUSEHOLD
1–4 people
Actual water use and peak demand still matter.
CAPACITY
36,000 grains
Published at 9 lb salt.
FLOW
10 / 14 GPM
Nominal / peak published flow.
SIZE FROM THE WATER + DEMAND
When SoftFlo SE deserves a closer look
SoftFlo SE is the higher-flow fixed-cycle two-tank option in the Water Fixers lineup. It can make sense when the measured hardness, expected daily usage and simultaneous flow demand need more reserve than SoftFlo S while the property has room for a separate resin tank and brine tank.
Home size and family size are only screening guides
A square-footage range does not tell you how hard the water is or how many fixtures may run at once. Water Fixers should confirm hardness, household demand, plumbing size, pressure, existing treatment and installation space before final equipment selection.
SPECIFICATIONS + FEATURES
SoftFlo SE specifications
Use the tabs to compare the model’s fit, performance, controls, installation requirements and current published warranty terms. Product values should still be confirmed with the written information supplied at purchase.
SoftFlo SE is a two-tank Water Fixers softener. The values below are the current published product specifications and should be matched to measured hardness, household demand and the installation conditions.
Feature
USA Manufactured
Feature
Two-Tank System
Feature
Electronic Control Valve
Feature
Fixed Cycle Programming
Feature
Typical Home Under 2,400 sq. ft.
Feature
Typical Household 1–4 people
Capacity, resin and flow specifications for SoftFlo SE.
Resin Volume
1.5 cu. ft.
Resin Type
8% Crosslink
Resin Capacity
36,000 grains at 9 lb salt
Nominal Flow Rate
10 GPM
Peak Flow Rate
14 GPM
Maximum Working Pressure
90 PSI
Control-valve, programming and regeneration details for SoftFlo SE.
Control Valve
Electronic Control Valve
Programming
Digital screen with fixed cycle, hardness, capacity, salt pounds, time of day, regeneration time and Water Saving Factors
Regeneration
Down-flow regeneration with flow-meter totalizer and automatic regeneration
Equipment dimensions, connection sizes and salt-storage information for installation planning. Confirm drain routing, pressure, bypass access, salt-loading clearance and service space at the property.
Brine Tank
30 in. H × 18 in. D
Cabinet Salt Tank Capacity
300 lb
Cabinet Brine Well
Safety Overflow Float
Resin Tank
10 in. D × 54 in. H
Control Valve Connections
1 in. inlet and outlet ports
Control Valve By-pass Adapters
3/4 in. and 1 in. adapters
Current published warranty terms are summarized below. The written warranty and conditions in effect at purchase control.
Control Valve
1 year — electronics, piston, seals, spacers and brine piston excluded
Resin Tank
3 years
Salt Tank
3 years
Specification review date: September 2, 2026. Final sizing and installation conditions should be confirmed at the property.
INSTALLATION FIT MATTERS
Plan room for the tank, brine tank and future service

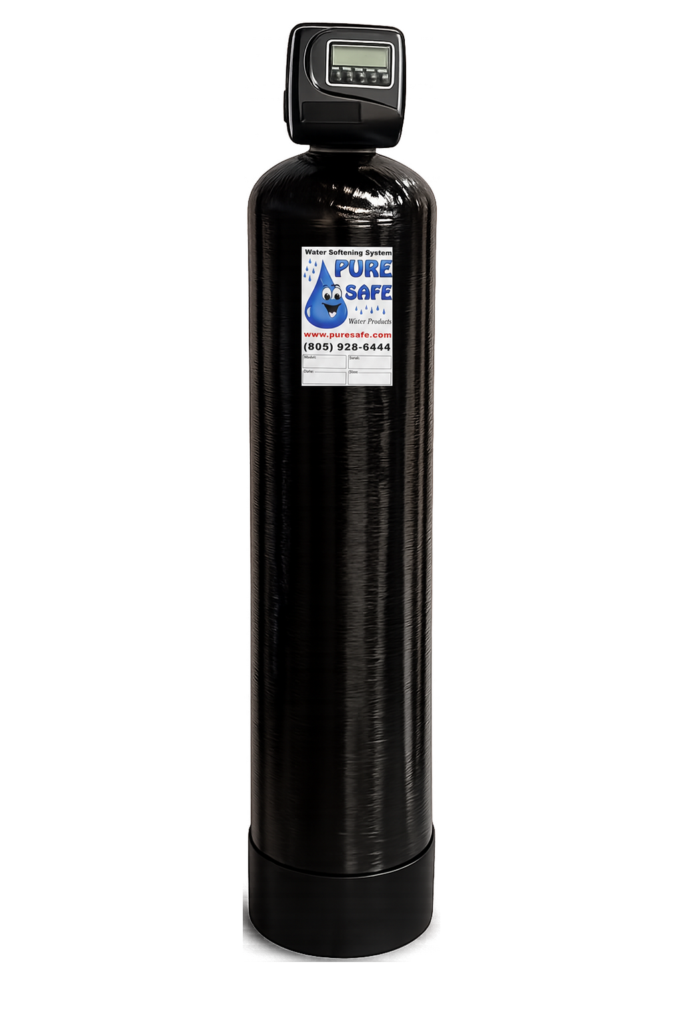

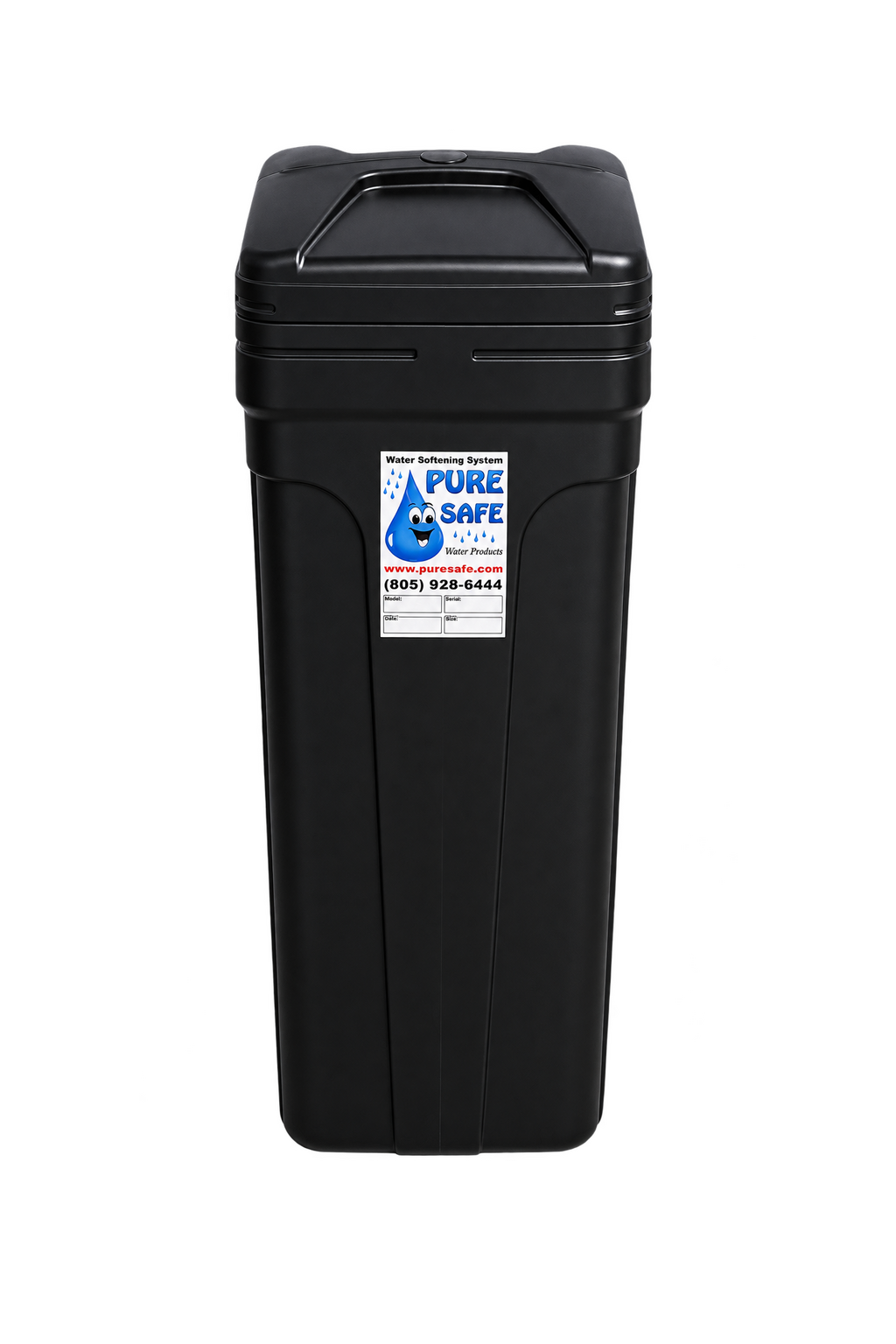

The published SoftFlo SE dimensions are a 10 in. diameter × 54 in. high resin tank and a 30 in. high × 18 in. deep brine tank. Salt storage is 300 lb. The valve uses 1 in. inlet and outlet ports, with 3/4 in. and 1 in. bypass adapters.
Do not size the installation from dimensions alone
The final layout also needs usable bypass access, control-valve clearance, salt-loading space, an appropriate regeneration drain route, plumbing access and pressure within the published maximum working pressure of 90 PSI. Existing filtration, pressure equipment and water-heater plumbing may also affect the service layout.
COMPARE BEFORE CHOOSING
See every Water Fixers residential softener
The five current systems differ in capacity, flow, configuration and control strategy. These are typical fit ranges; the model should follow measured hardness, household demand, simultaneous flow, installation space and service needs.
COMPACT ALL-IN-ONE
SoftFlo C
Under 1,400 sq. ft. • 1–3 people • 18,000 grains @ 9 lb • 5 / 8 GPM
BUDGET TWO-TANK
SoftFlo S
Under 1,800 sq. ft. • 1–4 people • 24,000 grains @ 9 lb • 7 / 10 GPM
HIGHER-FLOW TWO-TANK
SoftFlo SE
Under 2,400 sq. ft. • 1–4 people • 36,000 grains @ 9 lb • 10 / 14 GPM
HIGH-EFFICIENCY CABINET
SoftFlo SEC
Under 2,500 sq. ft. • 1–4 people • 36,000 grains @ 6 lb • 12 / 15 GPM
PREMIUM HIGH-CAPACITY
SmartSoft
Under 3,500 sq. ft. • 1–6 people • 48,000 grains @ 6 lb • 14 / 18 GPM
SoftFlo SE is shown for comparison only in its own card above; the page does not link the card back to itself.
SOFTENER OR SOMETHING ELSE?
Match the equipment to the actual water problem
A water softener is primarily an ion-exchange treatment for hardness. It should not be presented as the automatic answer to every taste, odor, sediment, staining or drinking-water concern.
Confirmed hardness & scale
If testing confirms hardness and the goal is reducing hardness-related scale and soap inefficiency, compare softener capacity and flow to the household demand.
Taste, odor, sediment or staining
These concerns can require different testing or filtration. Identify the condition before assuming a larger softener will solve it.
Drinking-water goal
Point-of-use drinking-water treatment can be a different problem from whole-house hardness. Keep reverse osmosis and other drinking-water options separate from softener sizing.
AFTER INSTALLATION
Keep maintenance and repair separate from model selection
SoftFlo SE is a serviceable water-treatment system. Routine salt/brine care, settings and performance checks belong on the maintenance path. Hardness breakthrough, leaks, valve faults, continuous draining, regeneration trouble or repeated failures belong on the repair/diagnosis path before replacement is assumed.
Water Softener Maintenance
Routine inspection, salt/brine care, settings, regeneration and performance checks for a working system.
Water Softener Service & Repair
Diagnosis for hardness returning, brine problems, valve/control faults, leaks, regeneration trouble and repair-versus-replacement decisions.
DIRECT ANSWERS
SoftFlo SE FAQs
Quick answers to common sizing, performance, installation and warranty questions.
NEED HELP SIZING THE SYSTEM?
Is SoftFlo SE the right fit for your home?
Water Fixers can test the water, review household demand and plumbing, confirm installation space, and compare SoftFlo SE with the other four current systems. The goal is to match the equipment to the actual hardness and usage—not to force every property into the same model.
